Zinc – acid
Electroplated zinc is the most economical and effective treatment for functional and decorative corrosion protection. Metal parts can be plated on racks as well as in drums. Electrolytic zinc can be alkaline or acid. It gives very bright and ductile coating.
Line description
Acid zinc – rack plating window 2300 mm x 1250 mm x 450 mm
Acid zinc – barrel plating – max. load 70 kg/barrel
Possible post-treatments
- Passivation (thick coating, blue, transparent, yellow)
- Sealing with adjustable coefficient of friction
- Heat treatment for hydrogen de-embrittlement
Corrosion Performance
Corrosion performance can be reached by choosing different passivation layers and topcoats.
Properties
Good metal distribution over current density area
Controlled friction with sealer/topcoat
Meets ELV and RoHS directives
Corrosion resistance in accordance with DIN EN ISO 9227 – according to customer specifications
Zinc coating can be treated in various ways by special post-treatments as passivation, painting and sealing
Hanging or drum application
Appearance

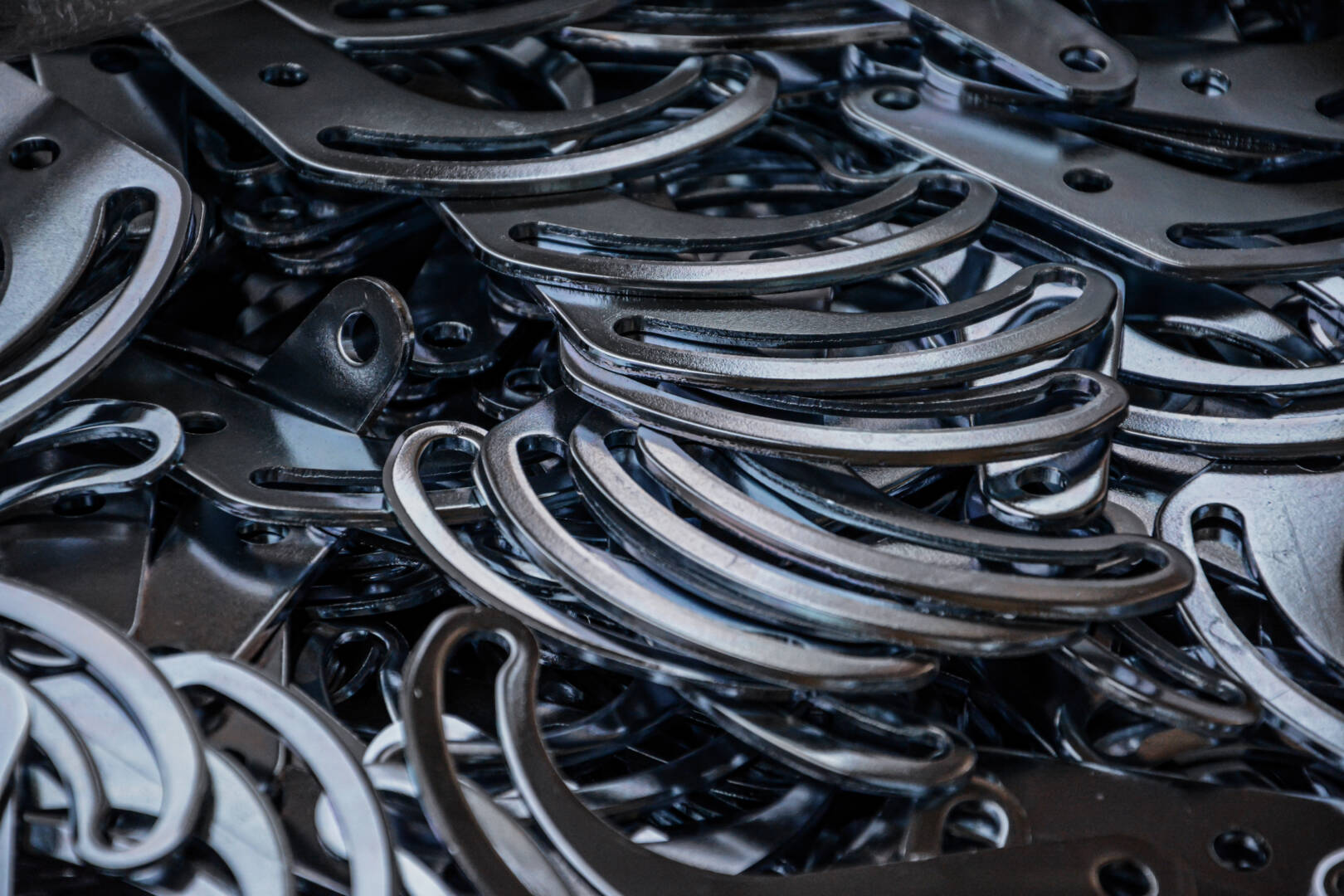

Blue

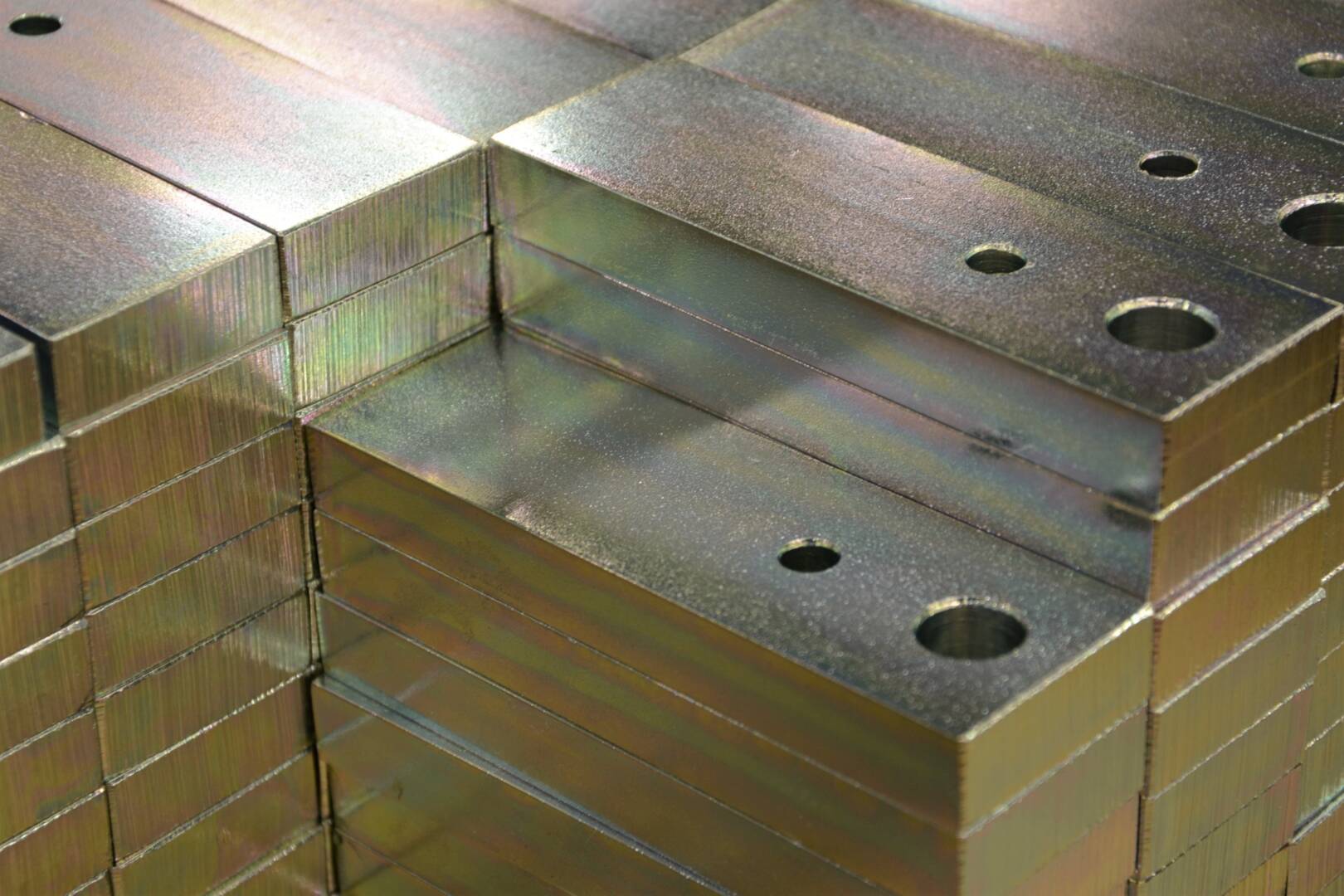

Yellow

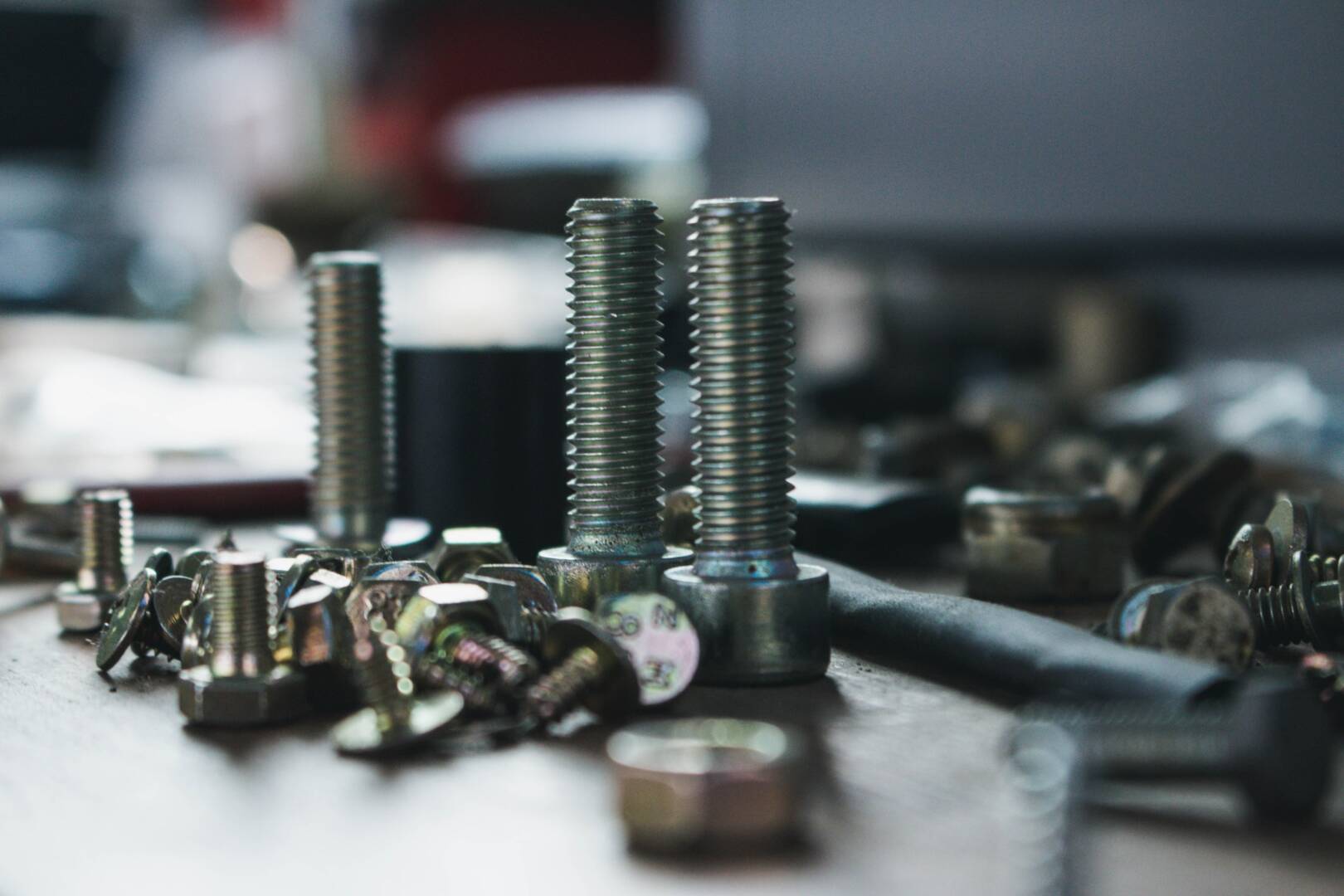

Thick
