Zinc-nickel
An electrolytic, inorganic, corrosion protective coating system suitable for application on parts which require very high corrosion resistance such as parts for automotive or construction industry. Zinc-nickel alloys with 12-16 % nickel content are very temperature resistant and have higher level of hardness compared to the normal zinc coating.
Line description
Automatic barrel line with a capacity of 800 kg/hour.
Automatic rack line - plating window 2300 mm x 1250 mm x 450 mm
Corrosion Performance
> 720 h to base metal corrosion according to ISO 9227 (NSS).
Supplemented treatment with sealer increases corrosion protection.
Meets VOLVO, Scania, ISO 4042 standards, etc.
Properties
Nickel content is approximately 12-15%
Increased thermal resistance
Extremely good corrosion inhibiting properties of the thin layers > 5 microns
Friction controlled with sealer / topcoat
720 h to base metal corrosion according to DIN EN ISO 9227 (NSS)
Supplemented treatment with sealer increases corrosion protection
Meets VOLVO, Scania standards, ELV and RoHS directives
Drum and rack application
Appearance
We only use different Cr 3+ post-finishing treatments (passivation)

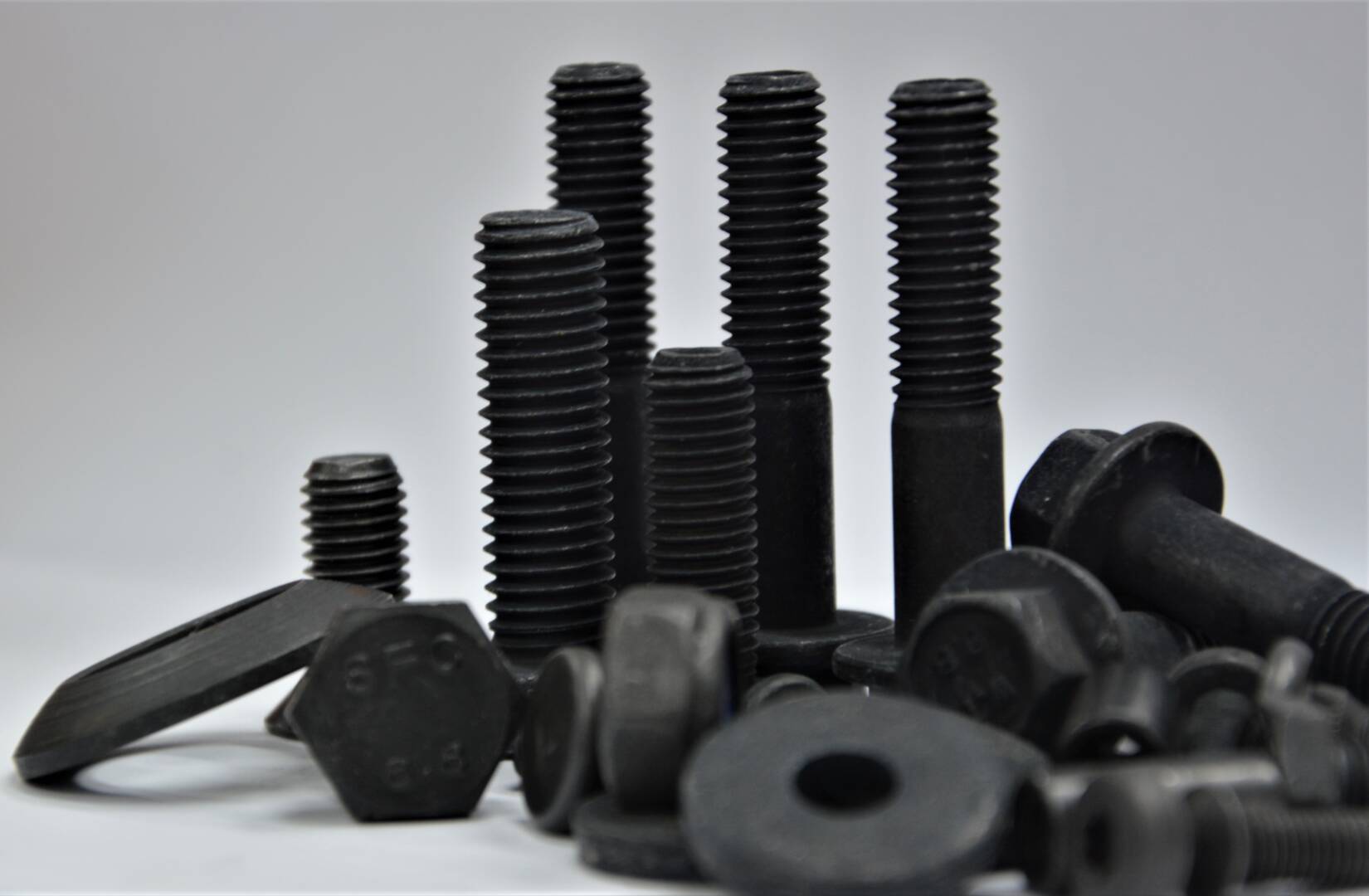

Black finish

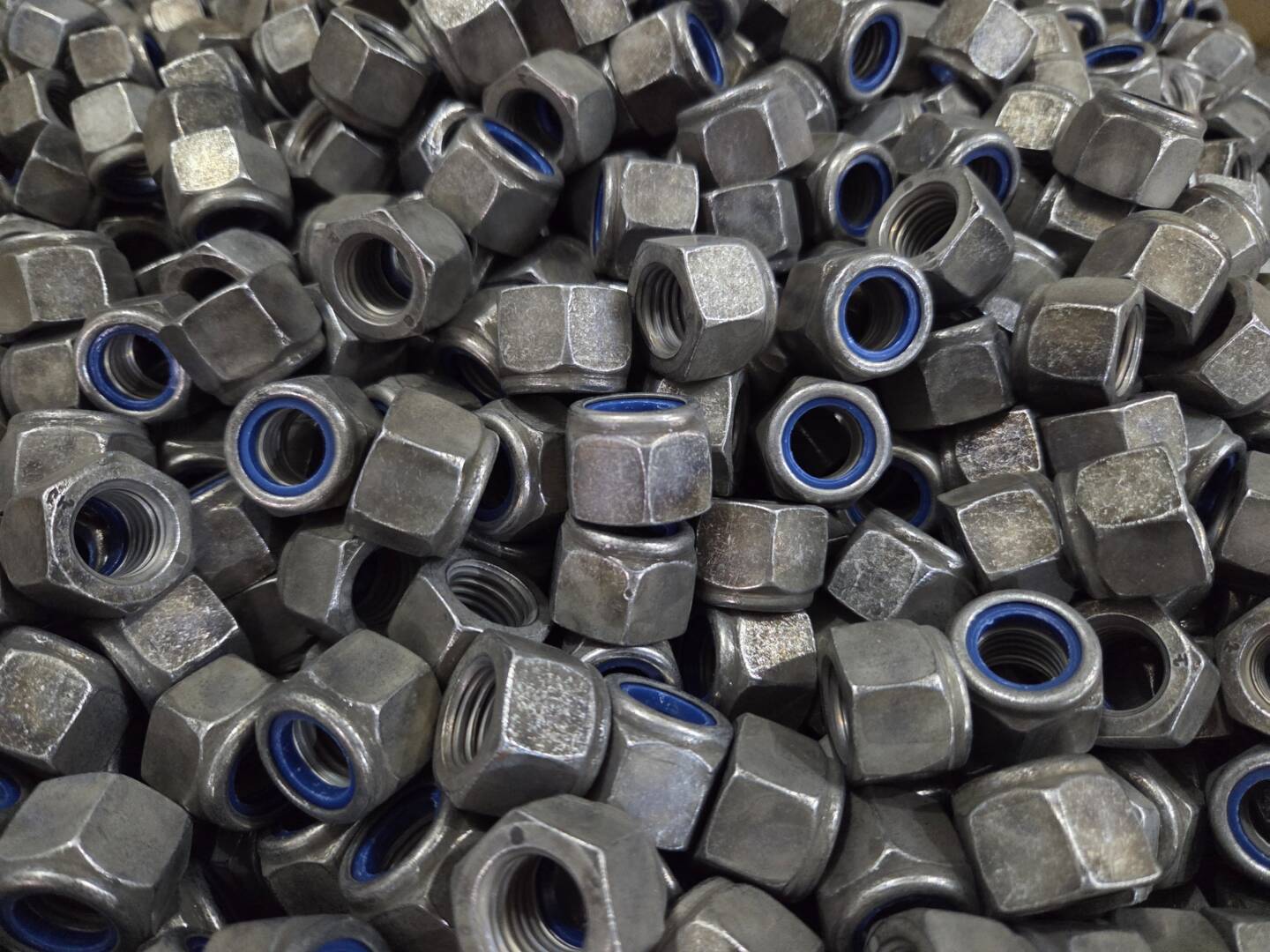

Silver finish
